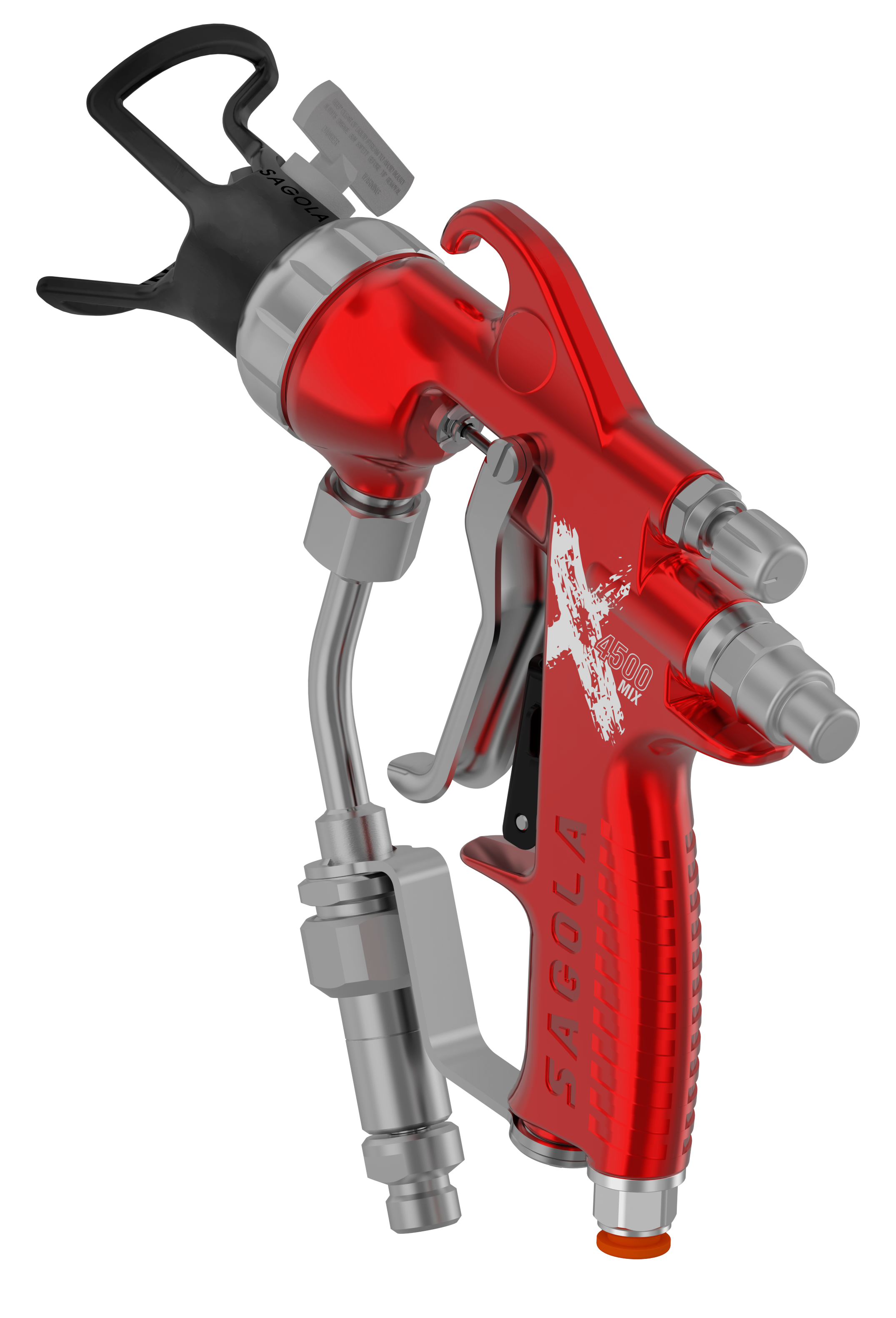

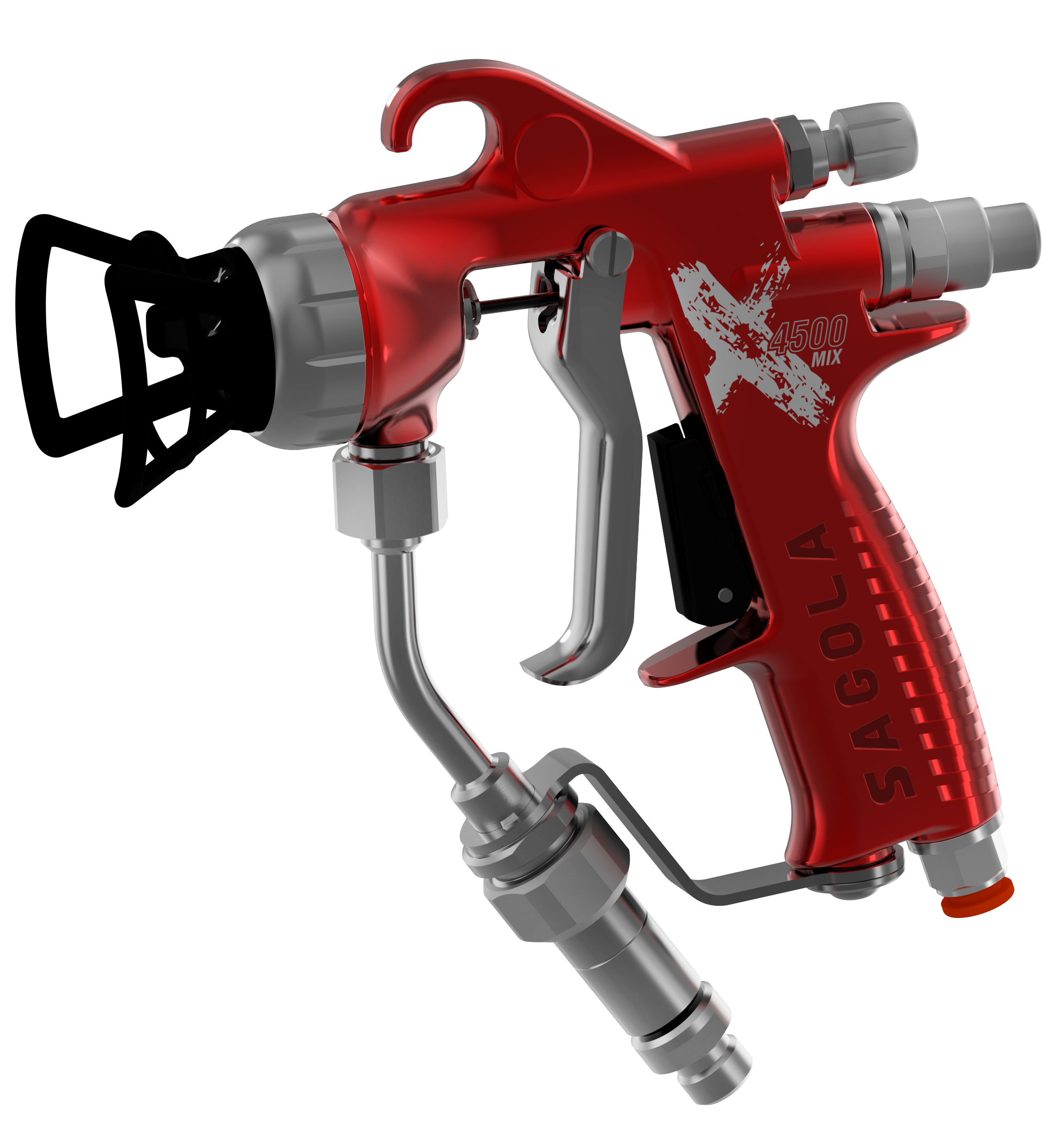

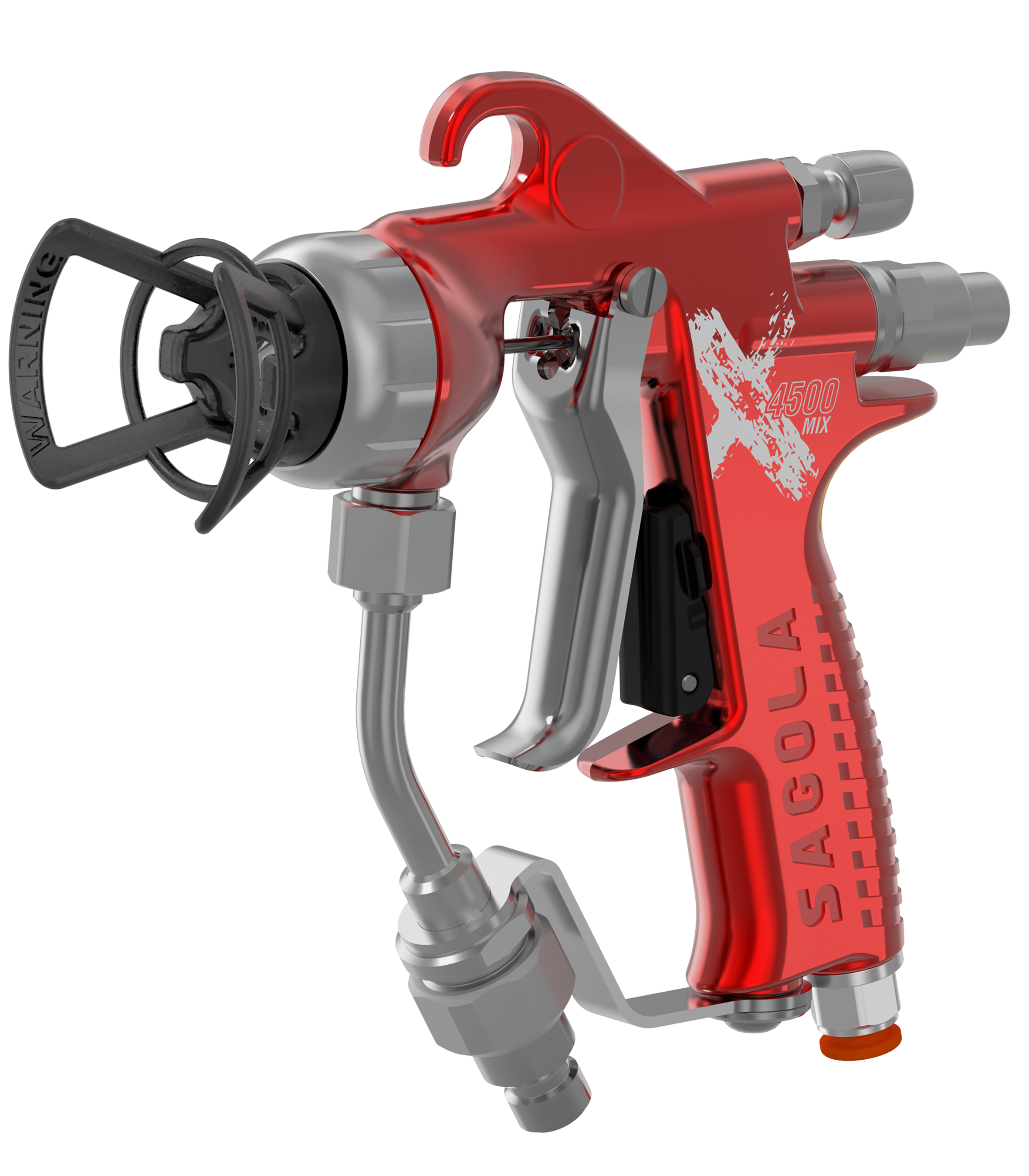

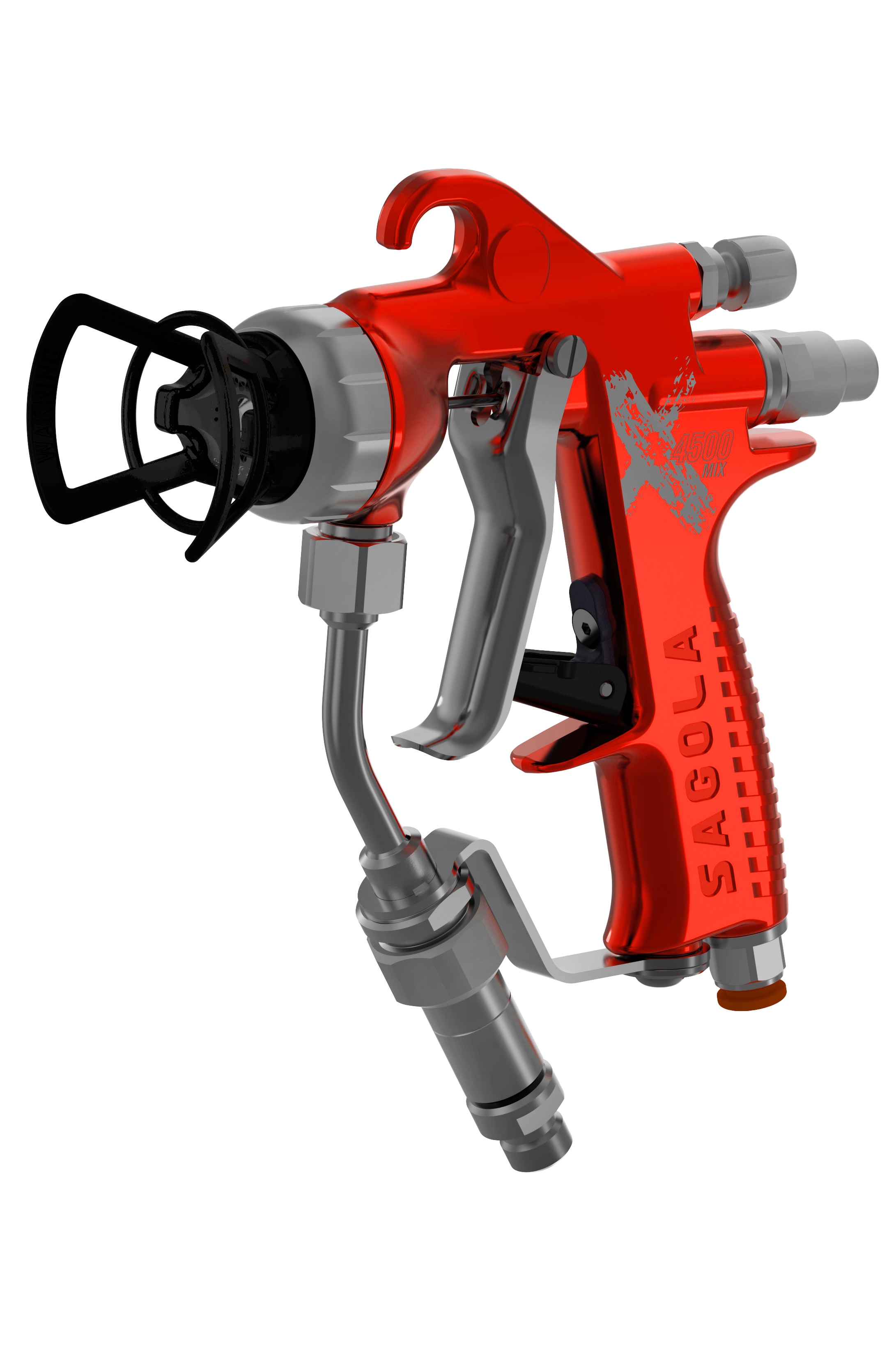

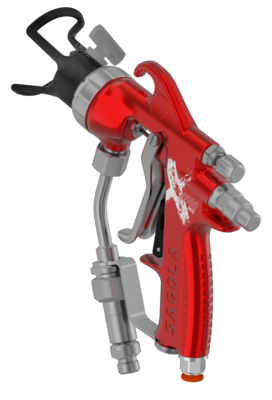

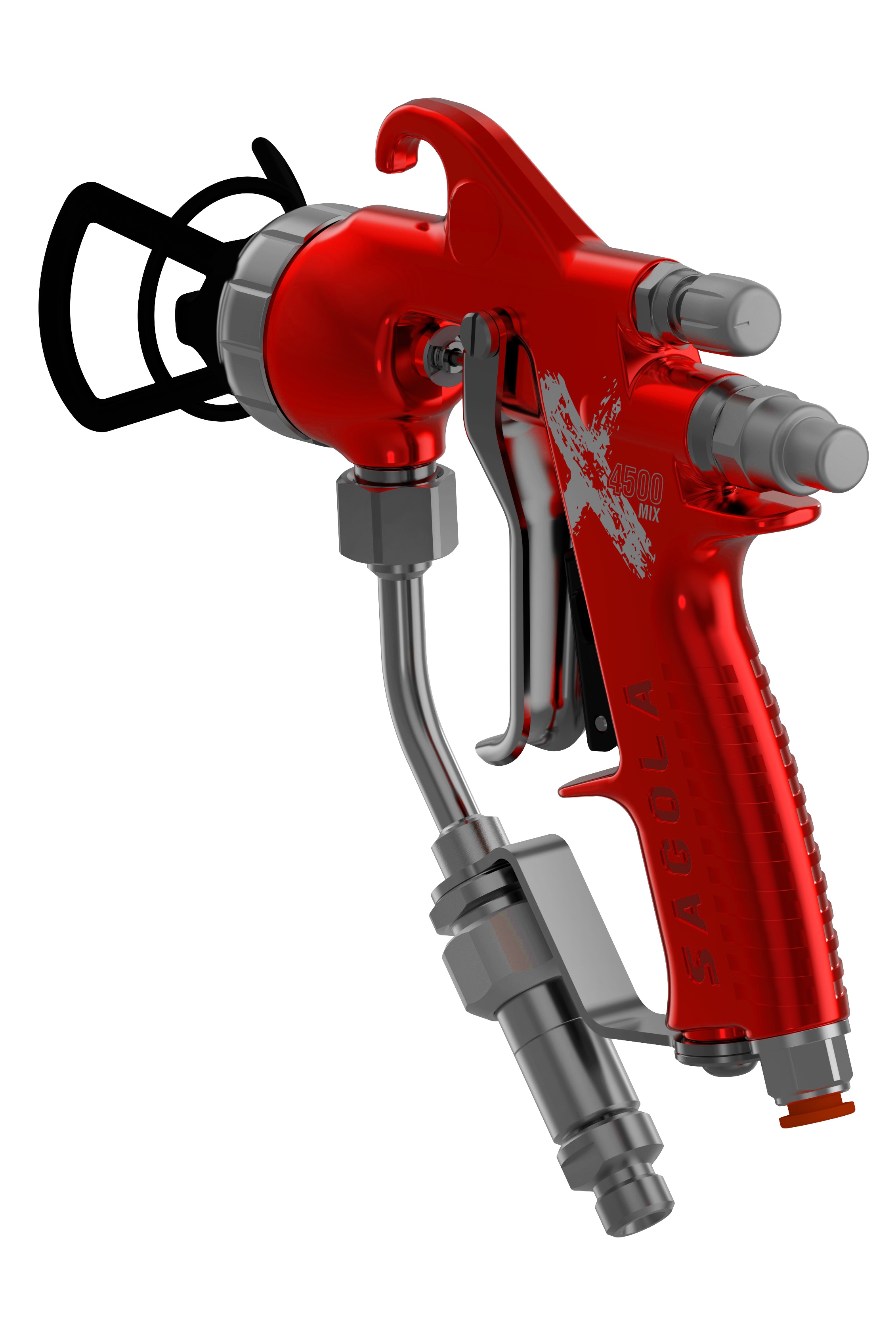

SAGOLA presents its new generation of high-performance hybrid spray guns for the most demanding industrial environments. Power, precision and control come together in the new X3500 and X4500 Mix models, designed to deliver maximum transfer efficiency and superior atomisation, even with high-viscosity materials.
A robust and contemporary aesthetic is combined with an optimised ergonomic design, achieving the perfect balance between strength and handling. Their carefully engineered weight distribution, together with high-precision machining, ensures comfort during long working sessions and a stable, uniform and professional application.
Power and superior atomisation
Hybrid technology combines fluid pressure and air assistance to achieve fine atomisation even with high-viscosity materials. Greater transfer efficiency, uniform application and high-quality finishes in demanding industrial environments.
Robustness and industrial reliability
Built with high-strength materials and precision machining, the X3500 and X4500 Mix models are designed to withstand long working hours and extreme conditions, ensuring consistent performance and extended service life.
Control and stability in every pass
Their balanced ergonomic design and optimal weight distribution provide comfortable and safe handling. The applicator achieves a consistent and stable spray pattern, reducing fatigue, overspray and rework.
Easy maintenance and maximum durability
Designed with metal-to-metal contact in critical fluid areas, eliminating unnecessary seals in the application zone. Easy disassembly, quick cleaning and reduced component wear to minimise downtime.

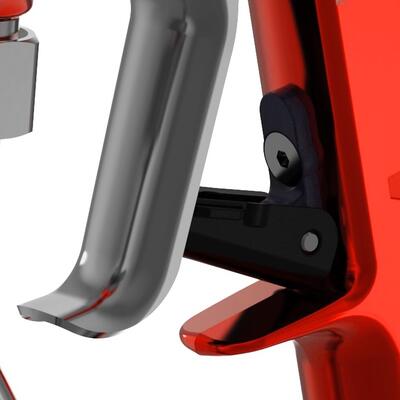

Safety system
Easy gun locking system. Système de sécurité.

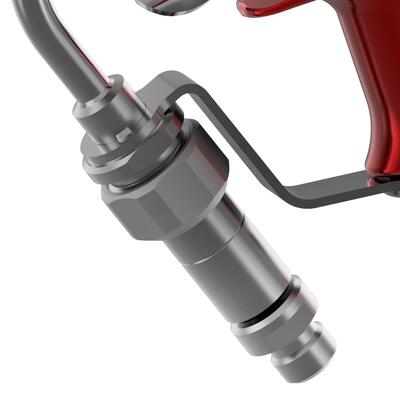

Rotating filter holder
Facilitates access to difficult areas and reduces fatigue during continuous painting sessions.
| Net weight | 602.5 grams |
| Weight (with swivel coupling) | 642.5 grams |
| Dimensions | 16.2 x 17.8 cm. |
| Dimensions (with swivel coupling) | 16.2 x 19.9 cm. |
| Product inlet connection | Quick connector 8 mm / M16 |
| Product inlet connection | BSP 1/4” M (with or without swivel coupling) |
| Product filter | 60/100 mesh |
| Recommended working pressure | 2 bar (29 psi) |
| Average sound pressure level | 80 dB |
| Materials in contact with the product | Brass, Stainless Steel, Tungsten Carbide, PTFE, Polyamide, FKM |
| Code | Version |
|---|---|
| 35130701 | Sagola X4500 Mix 11/40 Connector Ø8+rota |
| 35130702 | Sagola X4500 Mix 11/40 Connector Ø8+1/4" |
| 35130703 | Sagola X4500 Mix 11/40 Raccor M-16+rotar |
| 35130704 | Sagola X4500 Mix 11/40 Raccor M-16+1/4" |
| 35130705 | Sagola X4500 Mix 13/40 Connector Ø8+rota |
| 35130706 | Sagola X4500 Mix 13/40 Connector Ø8+1/4" |
| 35130707 | Sagola X4500 Mix 13/40 Raccor M-16+rotar |
| 35130708 | Sagola X4500 Mix 13/40 Raccor M-16+1/4" |

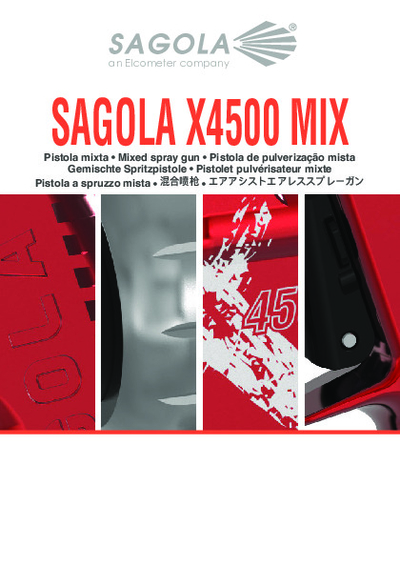

Pistola X4500 MIX
Manual
Pistola X4500 MIX

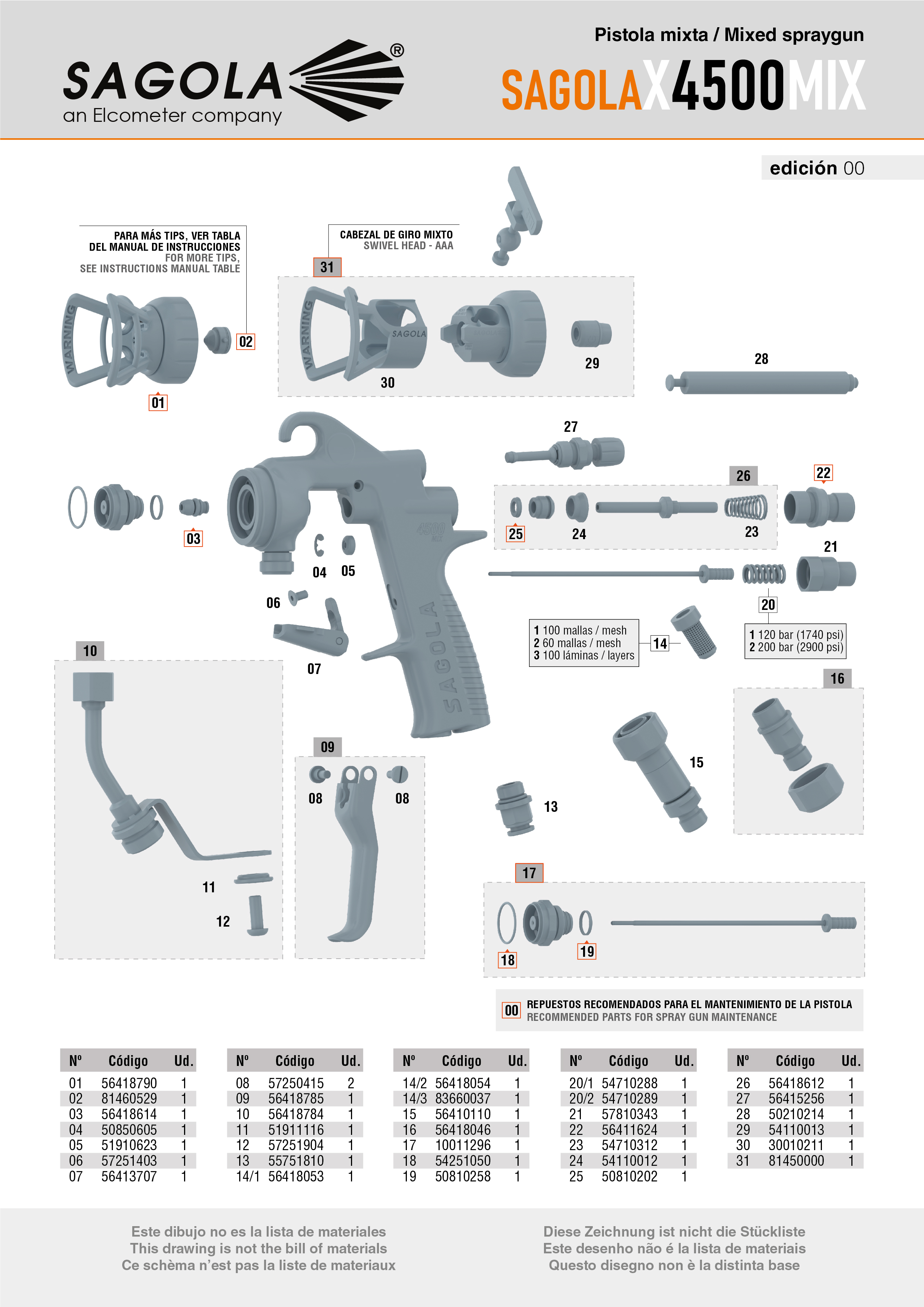

Exploded view
