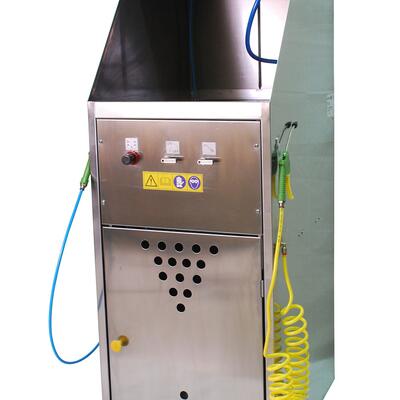

Design to clean spray guns and accessories when working with waterborne products.
Brush with water for cleaning the exterior of the gun.
Gun with coupling to clean interior areas.
Blowgun for drying.

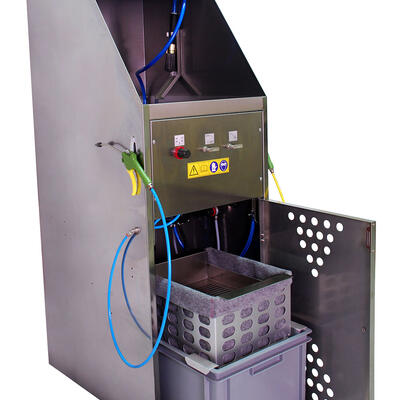

Filter mat for residues and pump absorption filter.
Allows to clean easily of the dirty water, mixing it with the floculant through a pneumatic system.
This way it separates completely the paint and pigment residues.
Robust and easy to use.
Minimum maintenance.
Made of stainless steel.
| Dimensions | 1.500 x 500 x 660 mm |
| Weight | 40 Kg |
| Grid | 275 x 385 mm |
| Deposit dimensions | 540 x 355 mm. (30 Litres) |
| Max. working unit weight | 5 Kg |
| Pump output | 5 L/min |
| Working pressure | 6 - 7 bar |
| CE Certification | YES |
| ATEX Ex II 3G | YES |
| Code | Version |
|---|---|
| 40000177 | AQUAplastic Spray Gun Washer |
Lavadora de pistolas AQUAPLASTIC
Exploded view
